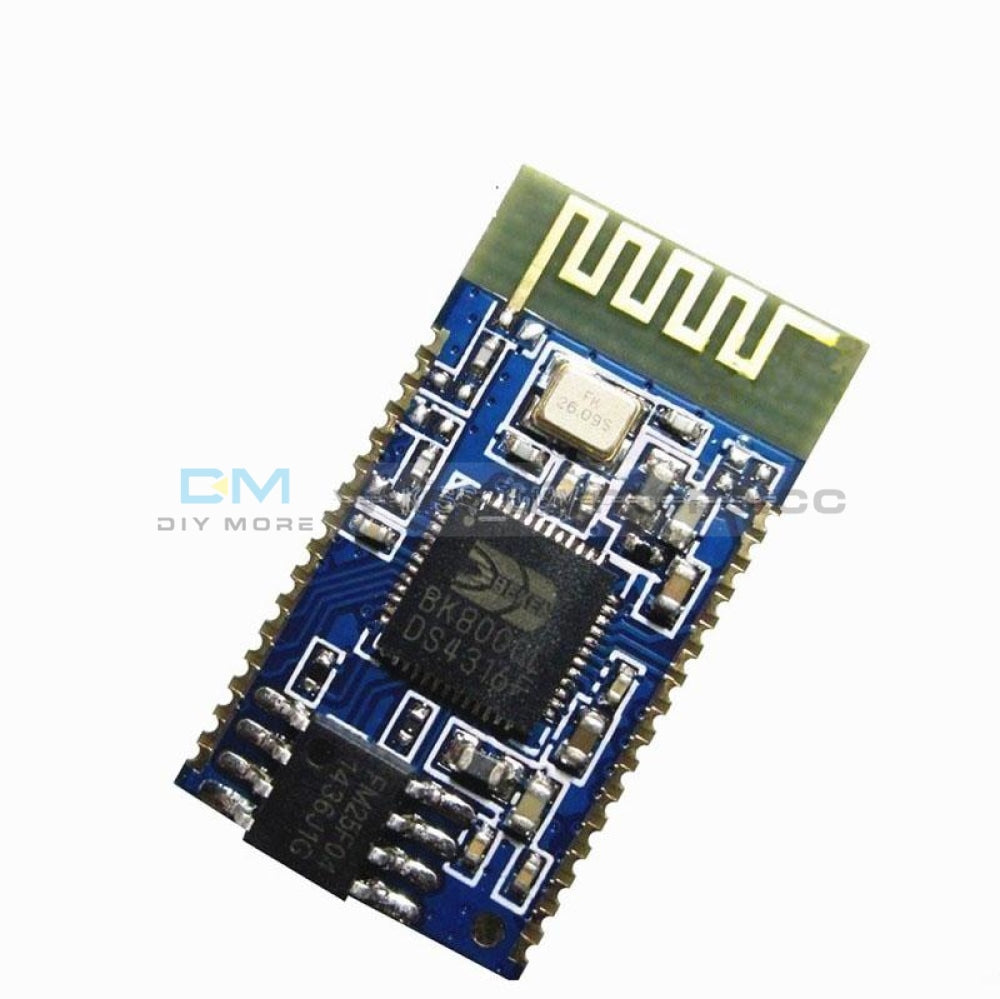

BK8000L Wireless Bluetooth stereo audio module serial SPP speaker amplifier DIY
Feature:
Bluetooth specification Bluetooth V2.1
Supply voltage DC2.8-4.2V, ≤2.9V automatic shutdown, ≤3.1V alarm
Bluetooth protocol HFPV1.5, A2DPV1.2, AVRCPV1.4, HSP1.2, GAVDP1.2, IOP
Working current ≤60mA
Standby current <500uA
Temperature range -40oC ~ + 85oC
Description:
Wireless transmission range ≤10 meters
Transmission power Class2 4dbm
Sensitivity -80dBm <0.1% BER
Frequency Range 2.4GHz ~ 2.480GHz
External Interface Serial (TTL), connected to the PC need MAX232
SBC decoding audio performance
Module size 25×13.5×1.8mm
Adapter plate size 31x25mm
Package Included :
1 x BK8000L Wireless Bluetooth stereo audio module serial SPP speaker amplifier DIY
